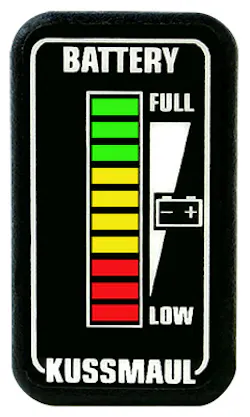

The Mini Single Bar Graph Display is a universal display containing a 10-LED bar graph to indicate the vehicle’s battery status.
The top or bottom LED’s blink to indicate HIGH VOLTAGE or LOW VOLTAGE is detected, respectively. The switch is designed to fit into a standard 1.45-inch by 0.83-inch panel cut-out. Connect the red, black, white, and green wires to the Kussmaul Battery Charger. High/Low Voltage Alert - The Mini Single Bar Graph Display contains detection for when there is a high or low voltage in the vehicle battery.
Knowing when the vehicle’s battery voltage is too high or low can help to protect the battery, and extend its life through proper use and maintenance. When there is HIGH VOLTAGE the top LED will blink. When there is LOW VOLTAGE the bottom LED will blink.
Find out more at http://www.kussmaul.com/091-234.html
