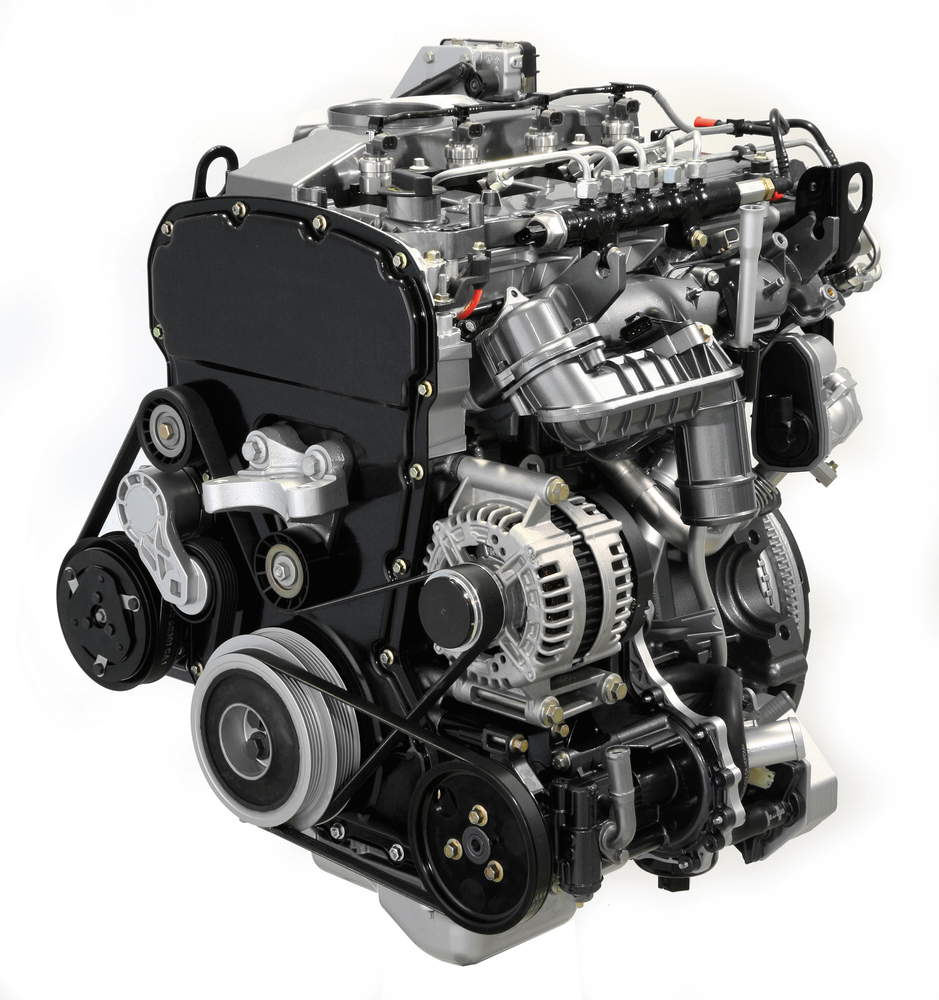

Advanced, Fuel-Efficient 3.2-Liter Power Stroke Turbo Diesel Makes North American Debut in All-New 2014 Ford Transit

Dec. 10, 2012
Already a proven global workhorse, Ford adds 3.2-liter five-cylinder turbo diesel to fuel-efficient North American lineup in all-new Transit commercial van range

DEARBORN, Mich., Dec. 10, 2012 – Ford’s all-new Transit full-size van, which goes on sale late next year, will be offered with a new clean-running 3.2-liter Power Stroke® five-cylinder diesel, further bolstering Ford’s lineup of fuel-efficient cars, trucks and SUVs.

The new diesel, Ford’s second in North America, already has established a proven record for reliability, durability and refinement in the global Ford Ranger truck sold in world markets. The new Power Stroke Diesel will be the only five-cylinder diesel engine available in a commercial van in North America.

“Commercial van drivers spend most of their working hours behind the wheel. We know they want a fuel-efficient diesel engine with smooth, responsive performance and low operating costs,” said Joe Bakaj, Ford vice president of Powertrain Engineering. “The 3.2-liter Power Stroke engine has been developed and proven globally to deliver a world-class combination of power, fuel economy and refinement.”

The 3.2-liter will join the most fuel-efficient lineup in Ford Motor Company’s history. Next year, Ford will offer eight vehicles rated at 40 mpg or higher – double today’s total, and more than any other automaker. Ford tops Toyota in fuel economy in every segment in which both companies compete.

While power has not been certified for North America, the new diesel engine is rated in Europe at 197 horsepower and 347 lb.-ft. of torque.

Like the larger 6.7-liter Power Stroke V8 offered in Ford F-Series Super Duty trucks, the fuel system has been carefully tailored and calibrated for combustion efficiency. It enables the newest Power Stroke to achieve exceptional fuel economy ratings without affecting power levels.

The 3.2-liter turbo diesel features state-of-the-art piezoelectric fuel injectors fed through a high-pressure common rail fuel system, and advanced emissions technologies.

Precise injection timing and calibration also ensures a smooth combustion process to reduce hard diesel combustion clatter, resulting in lower noise levels that are more like a gasoline engine. Each injector nozzle has eight spray holes and can deliver up to five injections per combustion cycle. A pilot injection controls noise levels and a main injection is used for power generation.

Technical features of the new Power Stroke 3.2-liter include

  • Quick-start glow plugs that enable smooth and fast startups at temperatures down to 25 degrees F
  • Durable, rigid sand-cast gray iron cylinder block
  • Aluminum cylinder heads with double overhead cams and four valves per cylinder
  • Advanced common rail piezoelectric fuel injectors that deliver multiple injections per stroke to improve performance and reduce NVH; maximum fuel pressure is 26,100 psi
  • Variable nozzle turbocharger with electronic actuation; maximum impellor speed of 197,800 rpm
  • First application of selective catalytic reduction for reduced nitrogen oxide emissions in a Ford van
  • Integrated diesel oxidation catalyst and diesel particulate filter to save space
  • Expected to be B20 biodiesel compatible

Additionally, the engine features cast-aluminum, low-friction coated pistons with piston-cooling jets, which squirt oil on the underside of the pistons to keep the piston crowns cool under extreme operating conditions. Also included is a water-cooled high-performance electric-controlled exhaust gas recirculation valve that is better able to withstand coolant pressure drops.

The 3.2-liter Power Stroke is one of several engines that will be available for Transit in North America, including the proven 3.5-liter EcoBoost® gasoline engine. All engines are mated to a Ford 6R80 six-speed automatic transmission.

With a flat torque plateau – 90 percent of its peak torque is available from 1,700 to 3,500 rpm, providing better engine flexibility – Transit will be able to effortlessly haul full loads in town and on the highway, while offering flexible performance across each gear in the six-speed automatic transmission.

“The Power Stroke name is synonymous with power, work and long-term durability,” said Bakaj. “We’re confident our commercial van customers will be extremely pleased with the 3.2-liter’s fuel economy, performance and running costs.”

The Power Stroke 3.2-liter is manufactured in Ford’s Struandale Engine Plant in Port Elizabeth, South Africa. It will be exported to Ford’s Kansas City Assembly Plant in Claycomo, Mo., which received a $1.1 billion investment for the Transit.

About Ford Motor Company Ford Motor Company, a global automotive industry leader based in Dearborn, Mich., manufactures or distributes automobiles across six continents. With about 172,000 employees and 65 plants worldwide, the company’s automotive brands include Ford and Lincoln. The company provides financial services through Ford Motor Credit Company. For more information regarding Ford and its products worldwide, please visit http://corporate.ford.com.
